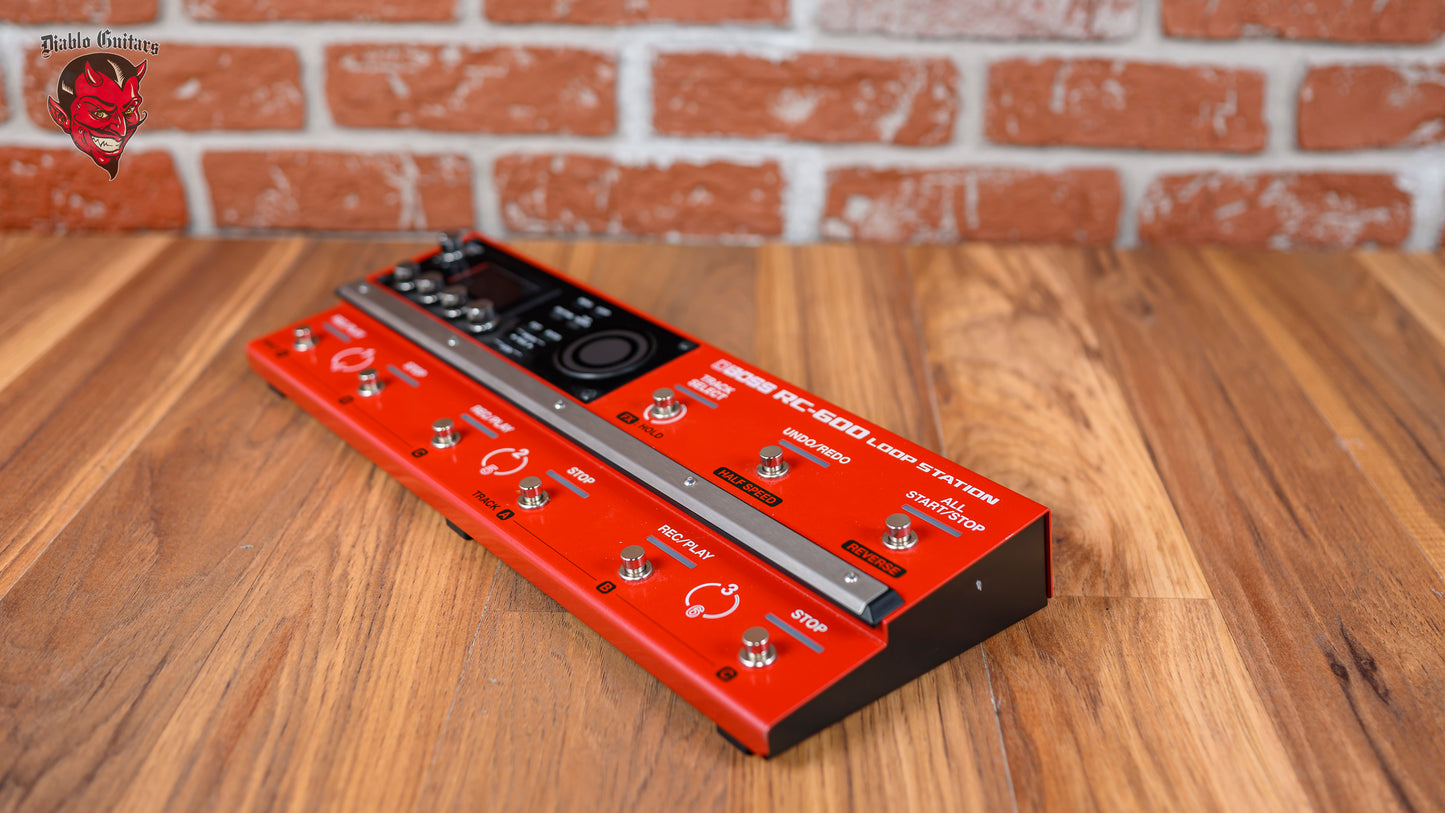

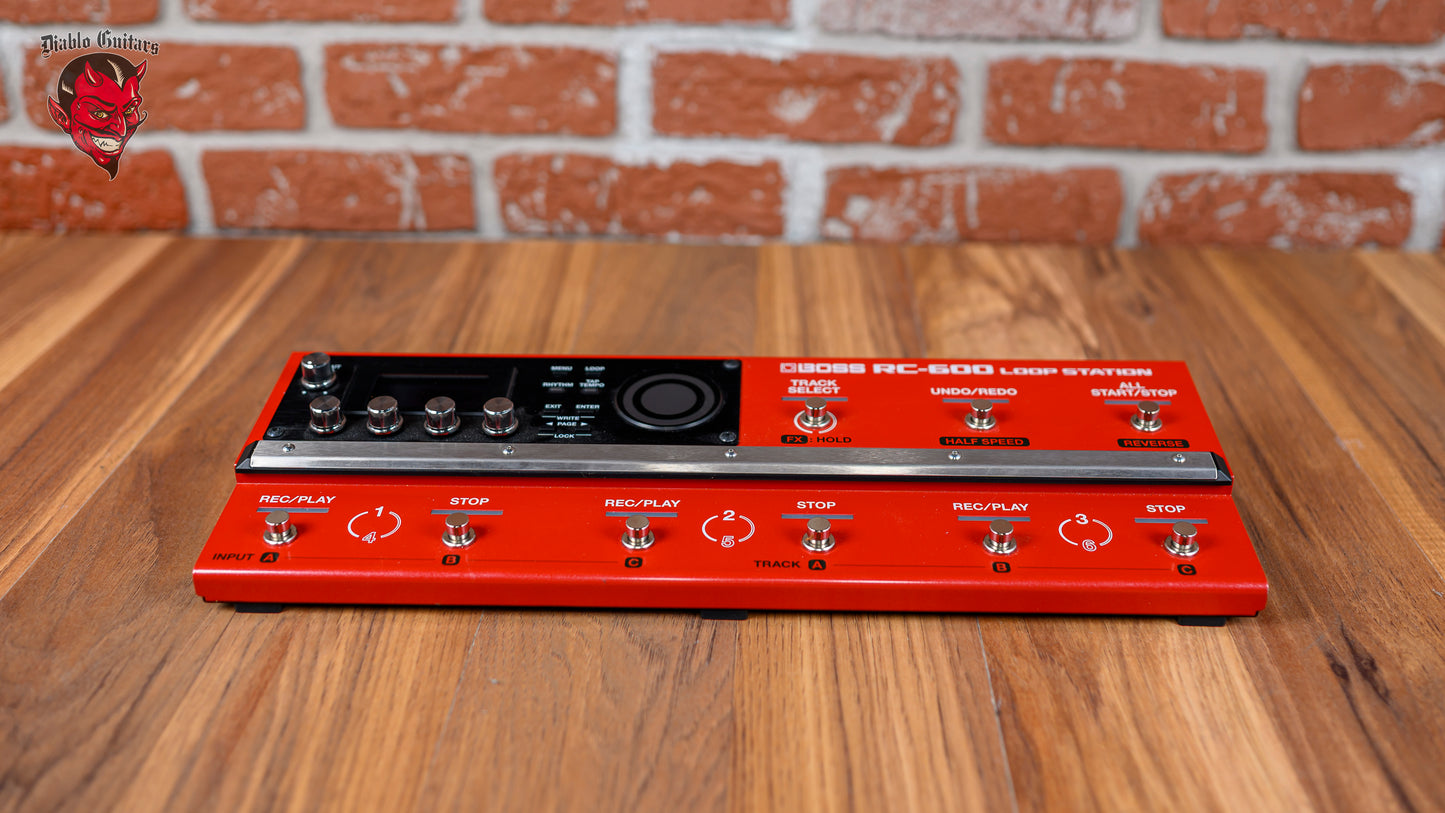

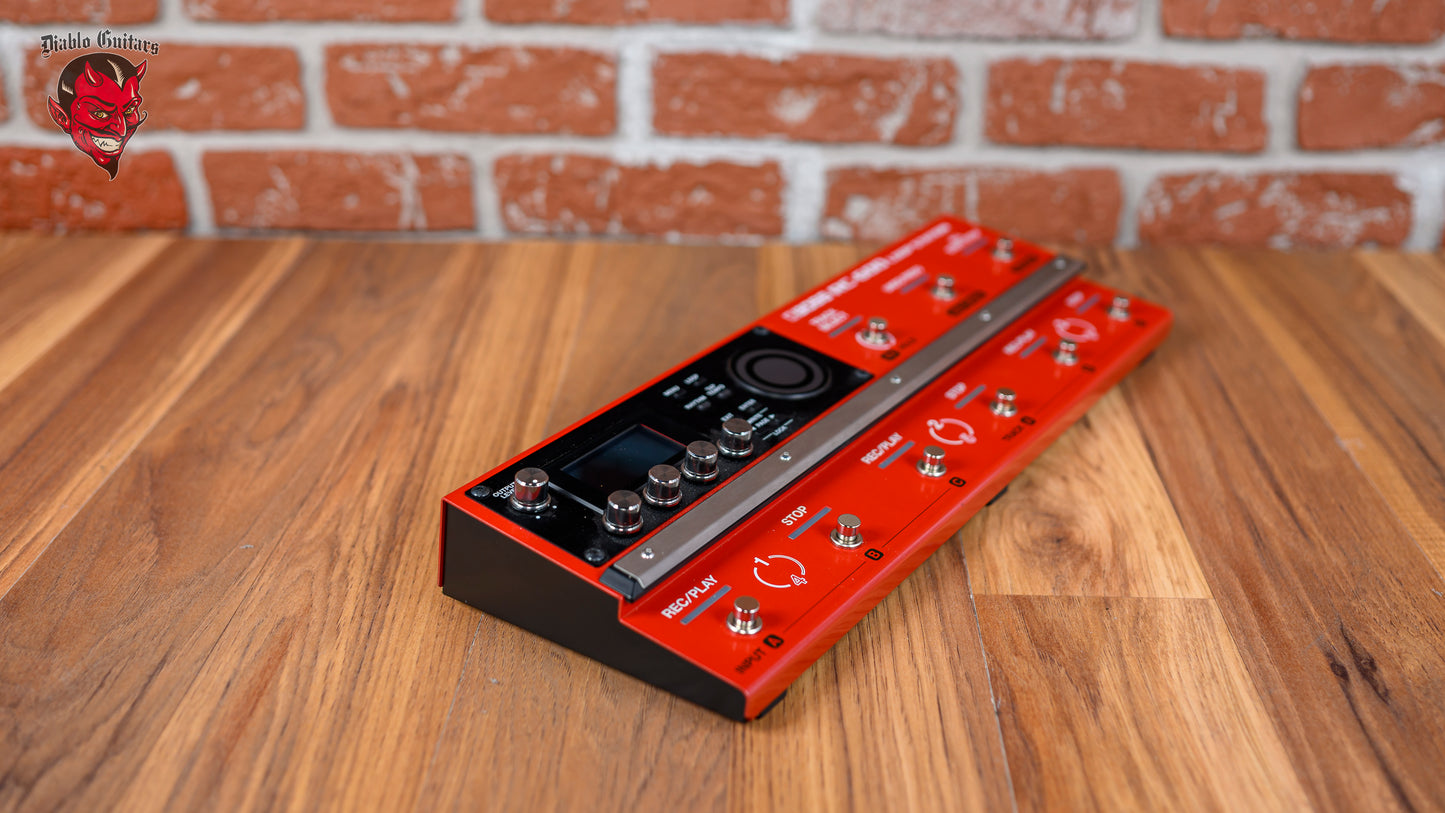

Boss RC-600 Loop Station 2021 Red

A Floor-Based Looper Like No Other

Meet the RC-600, the most advanced looper on the planet. Loaded with evolved features and customizable functions, this next-generation Loop Station ushers in a new era of creative power for guitarists, singer/songwriters, multi-instrumentalists, and other looping musicians. Capture multiple mics and instruments with six stereo tracks and premium 32-bit sound, and take full command with nine freely assignable footswitches and deep external control support. And that's just the start—you can also color loops with a massive FX selection, groove with onboard rhythms, route audio as you like to the three stereo outputs, integrate with computer software via USB, and much more.

Standard Features

• Flagship floor-based Loop Station with next-level sound quality and flexibility
• Class-leading sound quality with 32-bit AD/DA and 32-bit floating-point processing
• Six simultaneous stereo phrase tracks
• Ultra-flexible onboard control with nine freely assignable footswitches and three pedal modes
• Massive onboard effects selection with 49 Input FX and 53 Track FX types and the ability to use four at once in each section
• Time-based effects can automatically sync to rhythms and loop tempo
• Two XLR mic inputs with phantom power, two stereo line input pairs, and three stereo assignable line output pairs
• 99 memories, each containing six phrase tracks, custom effects and playback settings, control assignments, and more
• Synchronize your loops with over 200 onboard rhythm patterns and 16 drum kits
• Deep MIDI control support
• Streamlined and durable metal body
• Large circular loop status indicator and informative LCD screen with selectable display modes
• Two external control jacks, each with support for up to two footswitches or an expression pedal
• USB for data backup, phrase import/export with BOSS Tone Studio, and pattern import with the RC Rhythm Converter

Specs

• Sampling Frequency: 44.1 kHz
• AD/DA Conversion: 32 bits
• Processing: 32-bit floating point
• Recording/Playback: Number of Tracks: 6; Data Format: WAV (44.1 kHz, 32-bit float, stereo); Maximum Recording Time: Approx. 1.5 hours (1 track), Approx. 13 hours (total of all memories)
• Rhythm Type: 200 types or greater
• Rhythm Kit: 16 types
• Effect: INPUT FX: 49 types; TRACK FX: 53 types; MASTER FX: 2 types
• Memory: 99
• Nominal Input Level: MIC IN 1, 2: -40 dBu; INST IN 1, 2: -10 dBu
• Maximum Input Level: MIC IN 1, 2: 0 dBu; INST IN 1, 2: +7 dBu / +20 dBu (selectable)
• Input Impedance: MIC IN 1, 2: 3 k ohms; INST IN 1, 2: 1 M ohms / 25 k ohms (selectable)
• Nominal Output Level: MAIN OUTPUT: -10 dBu; SUB OUTPUT 1, 2: -10 dBu
• Maximum Output Level: MAIN OUTPUT: +7 dBu; SUB OUTPUT 1, 2: +7 dBu
• Output Impedance: MAIN OUTPUT: 1 k ohm; SUB OUTPUT 1, 2: 1 k ohm
• Recommended Load Impedance: MAIN OUTPUT: 10 k ohms or greater; SUB OUTPUT 1, 2: 10 k ohms or greater
• Controls: REC/PLAY switch x3; STOP switch x3; TRACK SELECT switch; UNDO/REDO switch; ALL START/STOP switch; MENU button; LOOP button; RHYTHM button; TAP TEMPO button; ENTER button; EXIT button; PAGE buttons; 1-4 knobs; OUTPUT LEVEL knob
• Display: Graphic LCD (128 x 64 dots, backlit LCD)

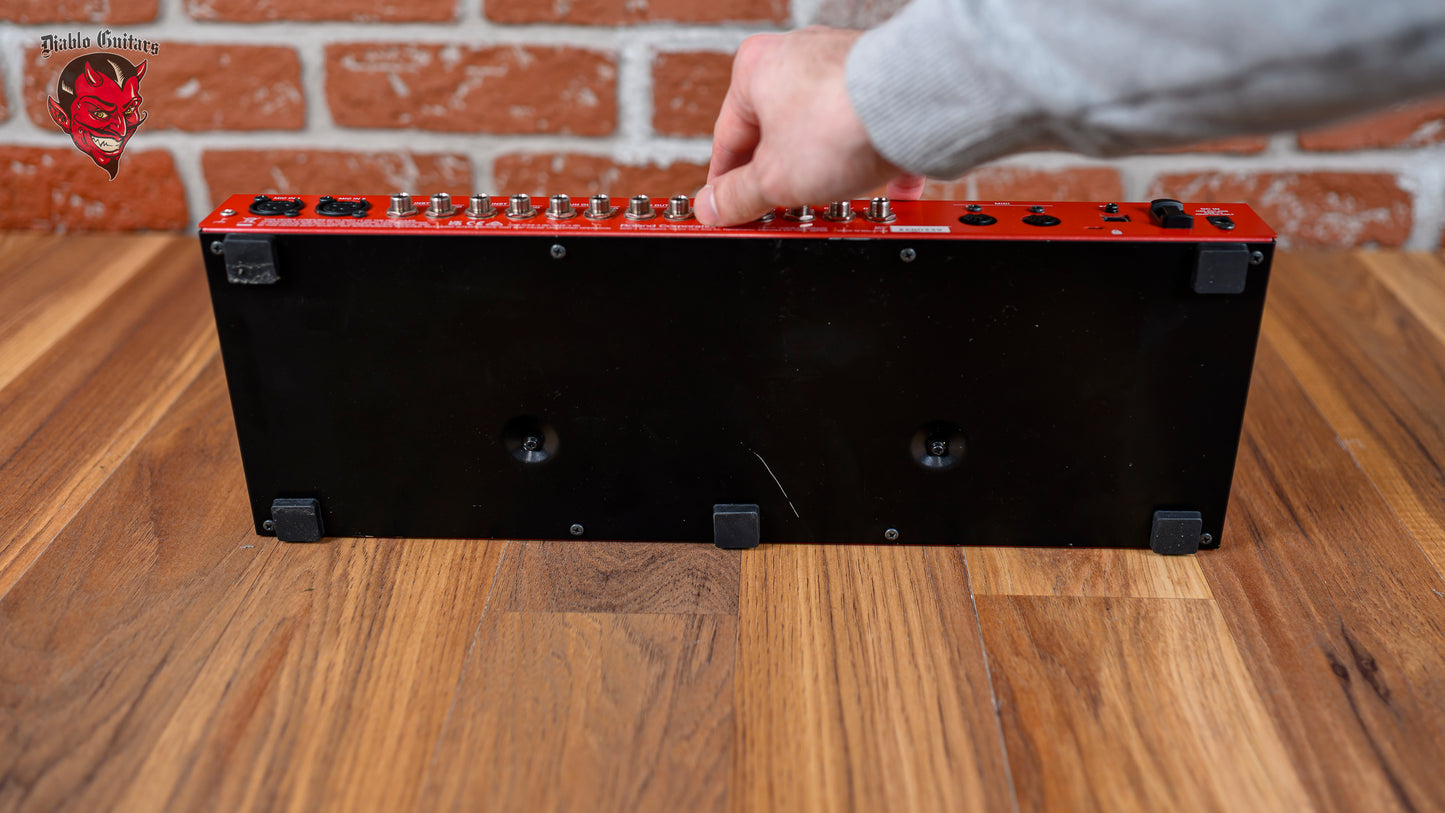

• Connectors: MIC IN 1, 2: XLR (balanced, phantom power DC 48 V, 10 mA max); INST IN 1, 2: 1/4 inch phone; MAIN OUTPUT: 1/4 inch phone; SUB OUTPUT 1, 2: 1/4 inch phone; PHONES: Stereo 1/4 inch phone; CTL1,2/EXP1 and CTL3,4/EXP2: 1/4 inch TRS; USB: USB B type; MIDI IN/OUT; DC IN
• Power Supply: AC adaptor
• Current Draw: 1.2 A with phantom power; 1.1 A without phantom power
• Power Consumption in OFF Mode: 0.1 W
• Accessories: AC adaptor; Owner's Manual; Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," "Information")
• Options: Footswitch: FS-5U; Dual Footswitch: FS-6, FS-7; Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
