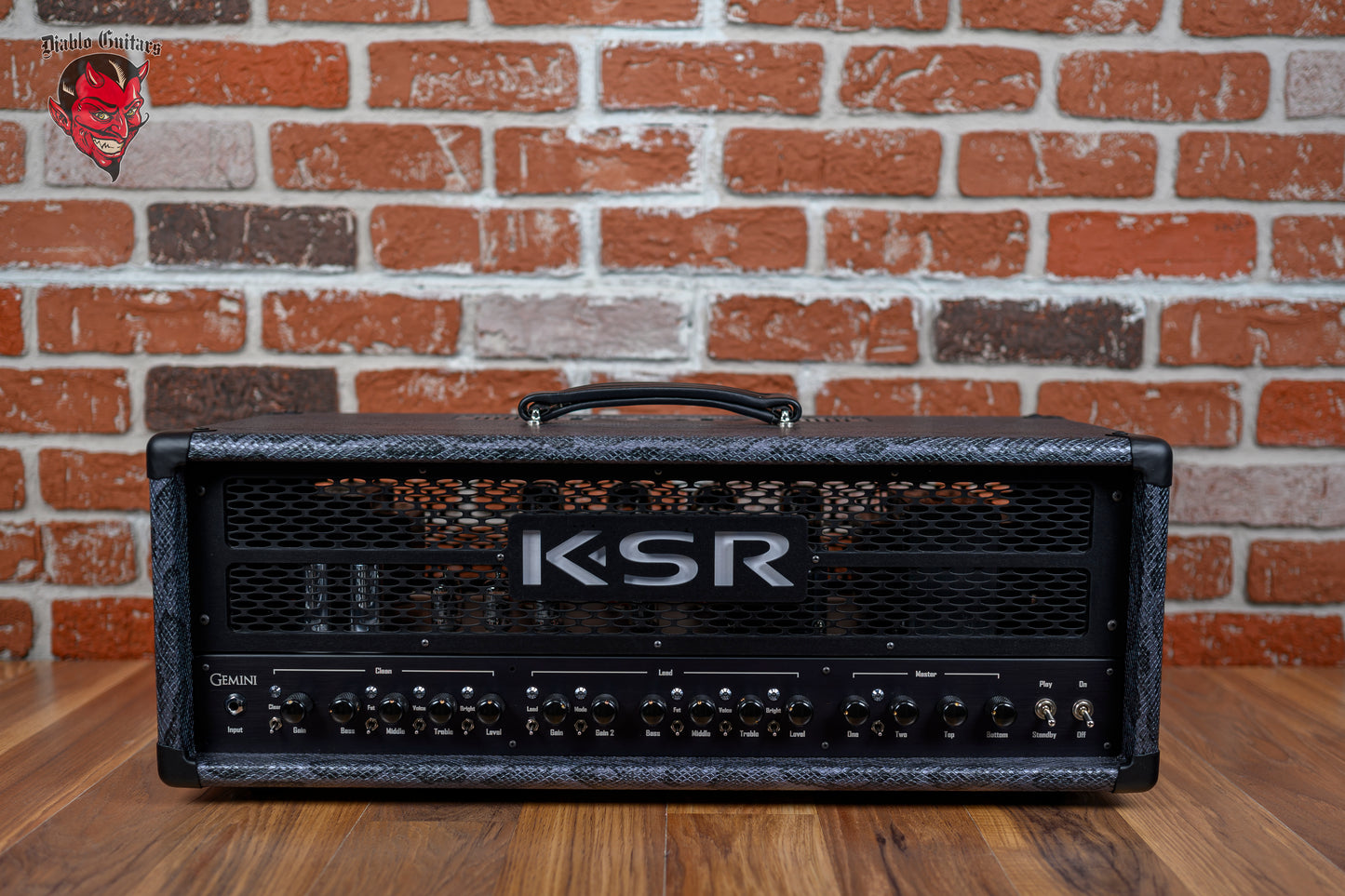

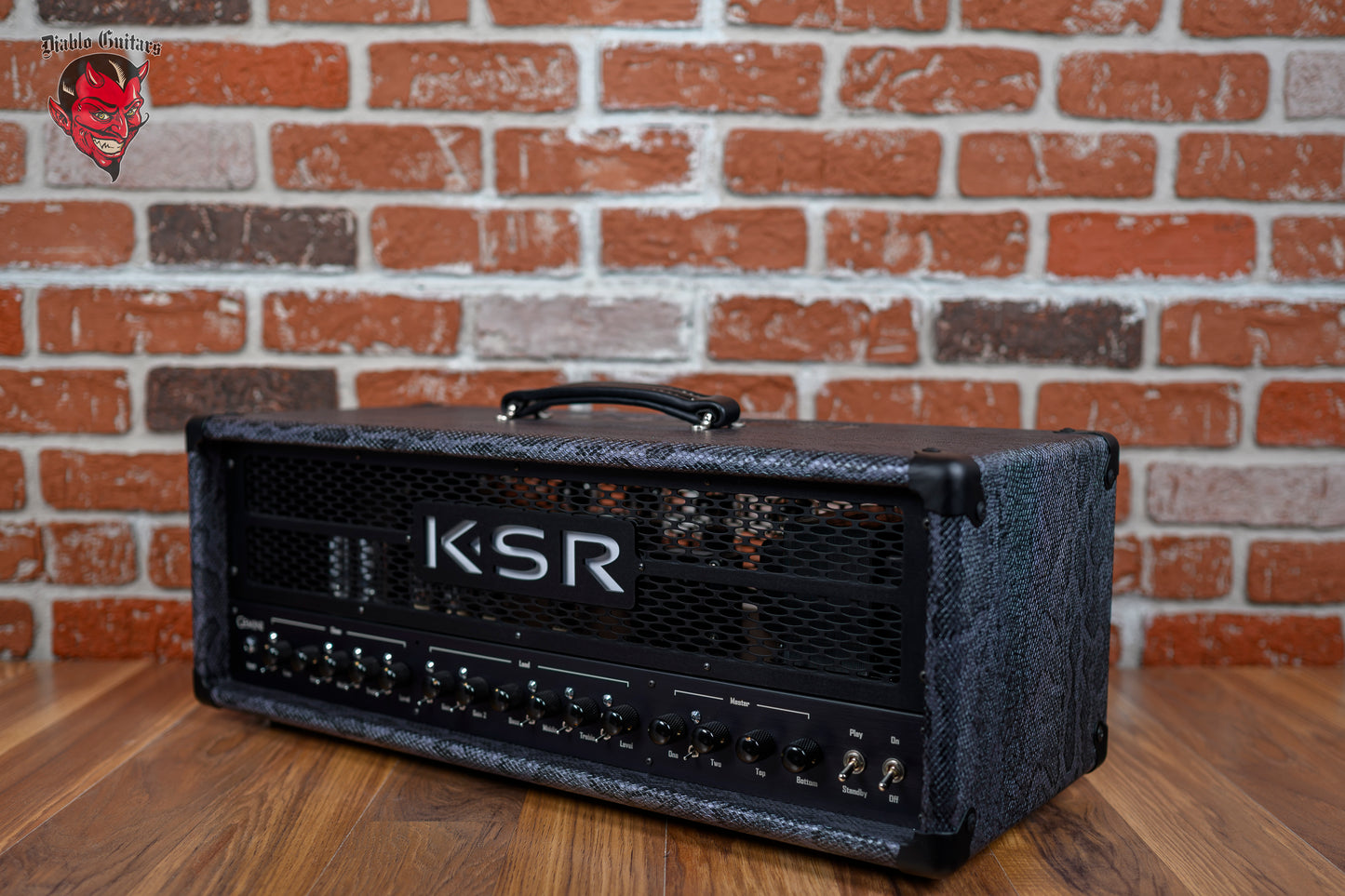

KSR Gemini 100 Guitar Head Black Snakeskin

The KSR Gemini 100 is a modern 2-channel 100-watt tube head that delivers a massive range of tones, from crystalline cleans to punishing high-gain saturation. With fully programmable channel modes, extensive voicing options, MIDI control, and a transparent effects loop, the Gemini 100 is one of the most versatile tube heads on the market. Its programmable architecture allows each channel to store multiple voicings, with up to 8 clean variations and 96 permutations on the lead channel, making it a true chameleon for stage and studio alike.

This example is in excellent condition, finished in black snakeskin tolex, with only minimal signs of handling. It is serial number 01-20091 and includes the original footswitch.

Specifications

• Make: KSR
• Model: Gemini 100
• Serial Number: 01-20091
• Country of Manufacture: USA
• Power Output: 100 Watts (switchable to ~50W)
• Power Tubes: 4 × 6L6GC (compatible with EL34, KT88, 6550, etc.)
• Preamp Tubes: 12AX7 (ECC83 array)
• Channels: 2 (Clean, Lead)
• Clean Channel Modes: Up to 8 programmable tones with Fat, Voice, Bright switches
• Lead Channel Modes: 96 permutations via 4 modes, Gain 2, Fat, Voice, Bright switches
• EQ per Channel: Gain, Bass, Middle, Treble, Level
• Master Section: Dual Master Volumes (selectable), Top and Bottom response controls
• Effects Loop: Transparent, bypass-capable, Send and Return level controls
• MIDI: In, Out/Thru; Omni or selectable channel; PC/CC control; phantom power support
• USB: Firmware updates and patch editor (via top-mounted port)
• Bias: Top-mounted test points and adjustment
• Speaker Outputs: 4Ω, 8Ω, 16Ω (parallel jacks)
• Enclosure: Black snakeskin tolex
• Faceplate: Black with white silkscreen
• Knobs: Black with white position indicators
• Chassis: Steel construction

Included

• KSR Gemini 100 Head
• Original Footswitch
• IEC Power Cable
